Compact Body with Complete Functions

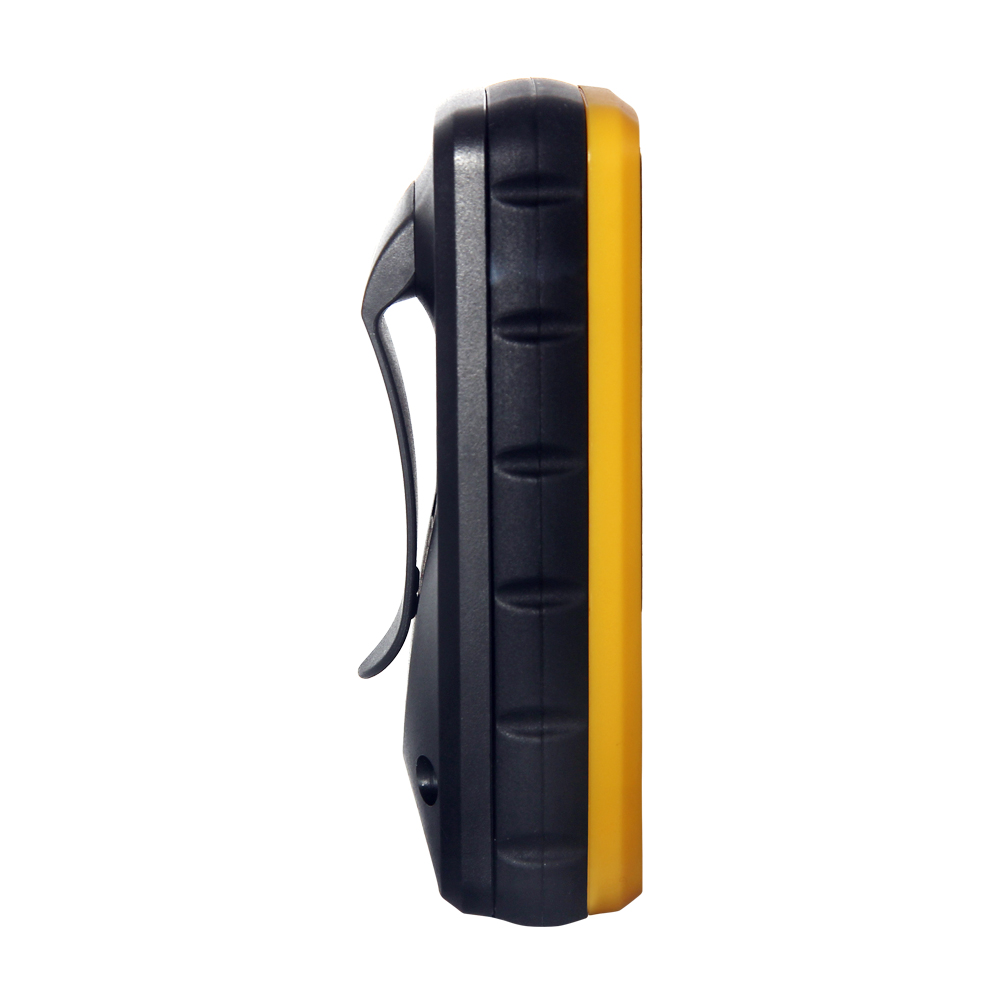

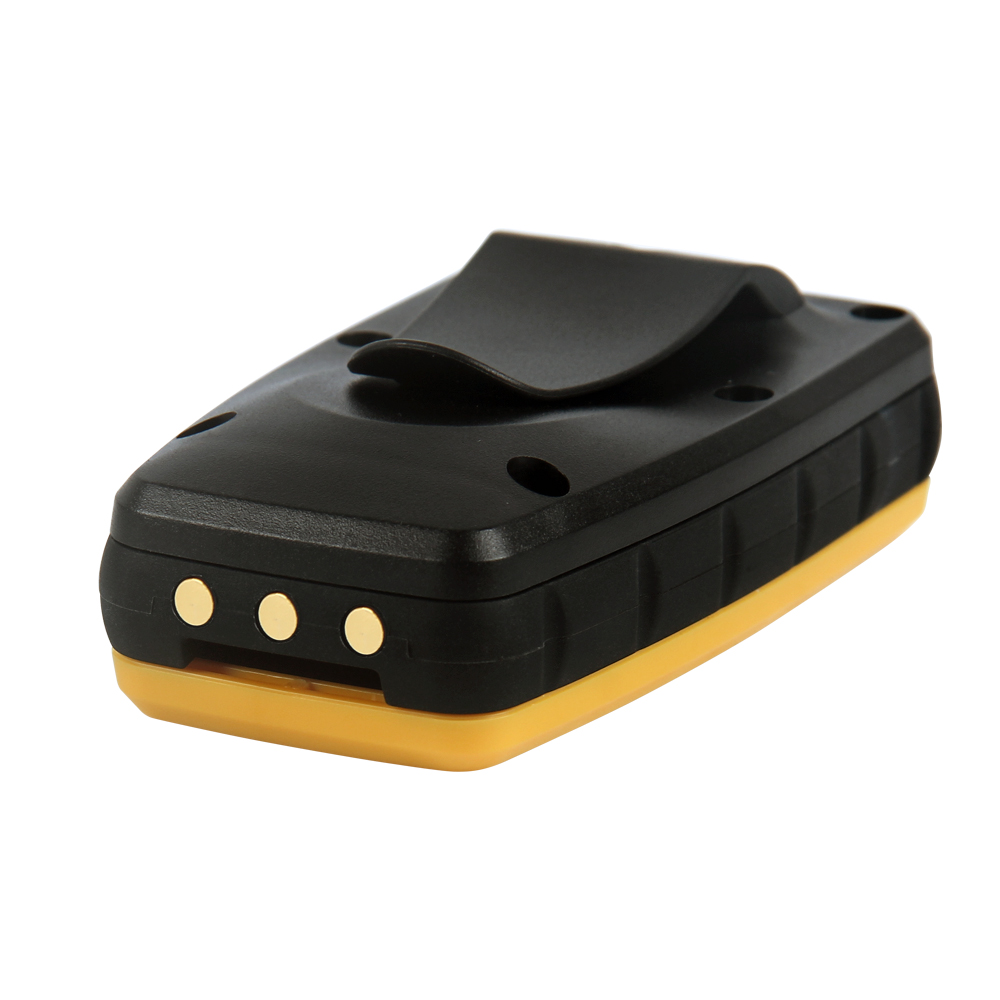

The transmitter is ergonomically designed and perfectly fits your palm. With a 2.5-inch waist circumference and 2.5-cm body thickness, the anti-slip integrated silicone sheath is easy to operate with one hand.

The transmitter has 9 one-step buttons with excellent hand-feel, and the front symbol of the button can be customized or implemented with a standard pattern.

The transmitter has high adaptability and rich functions. The system is suitable for wireless remote control applications with simple functional requirements. The button configuration can be selected as instantaneous button, self-locking button or interlocking button. Each button can be assigned to any receiver output or to multiple outputs at once. Buttons have the function of switching, and each button has two functions.

The transmitter presets the standard functions when it leaves the factory. Users can customize the functions through the attached software. Users also can control multiple targets with the same transmitter to achieve one-to-many, or register up to 128 transmitters with one receiver to achieve one-to-one.

The transmitter has 5 LED indicators for displaying the feedback information and can be programmed according to customers' requirements.

The transmitter communicates with the corresponding receiver by the protocol of Hamming Code, CRC check Code and the unique identification code.

The transmitter is equipped with automatic frequency management function and can work continuously without any interruption caused by radio interference of other wireless devices.

Soft-touch button & Customized Panel

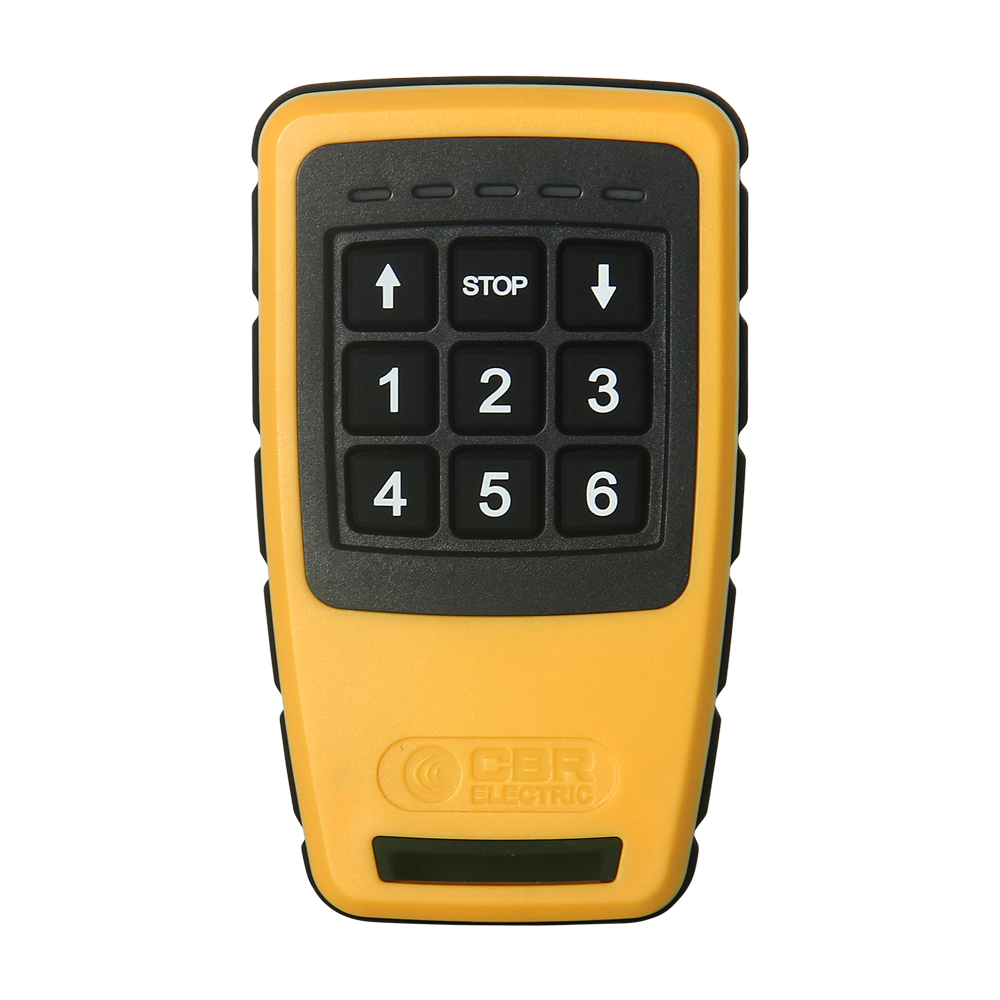

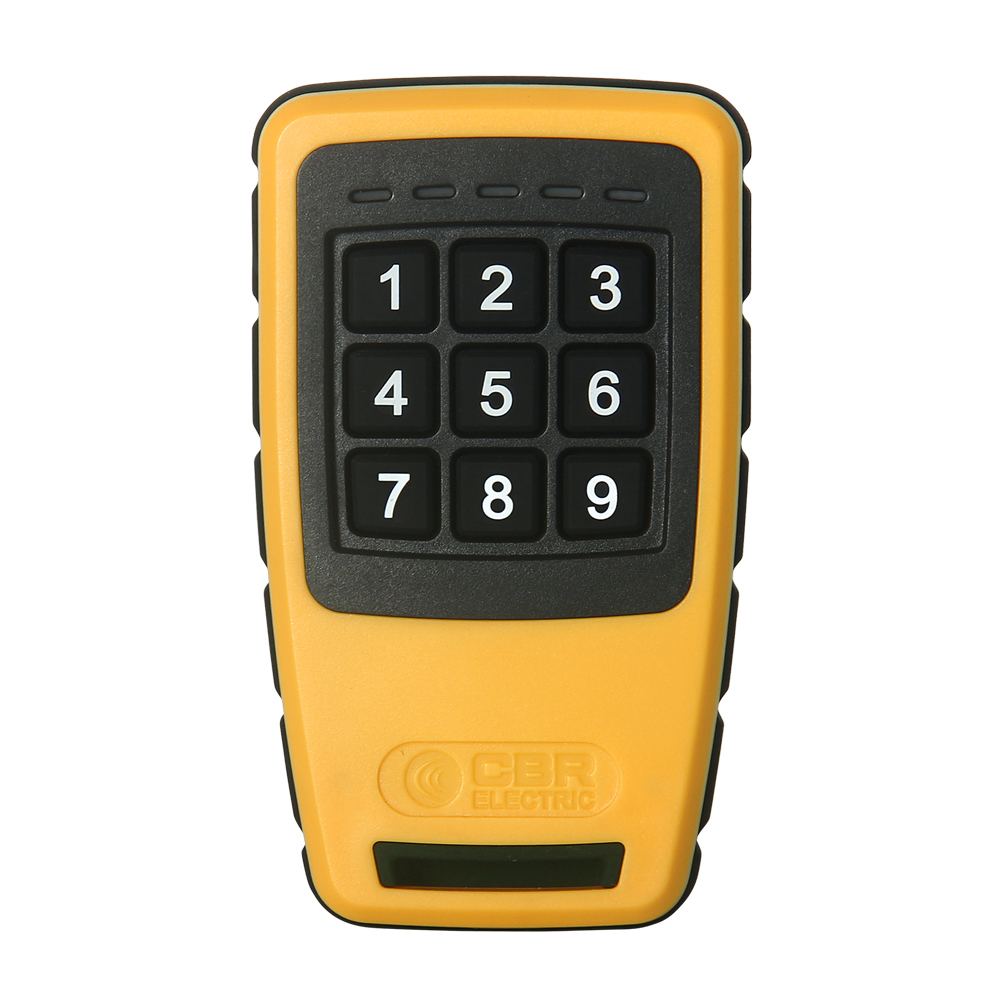

→  The transmitter has unique touch buttons and it is available in two models: a panel labeled 1-9 and a blank panel that allows you to customize the frame and key symbols. Blank panel usually comes with a frame label with a standard pattern.
