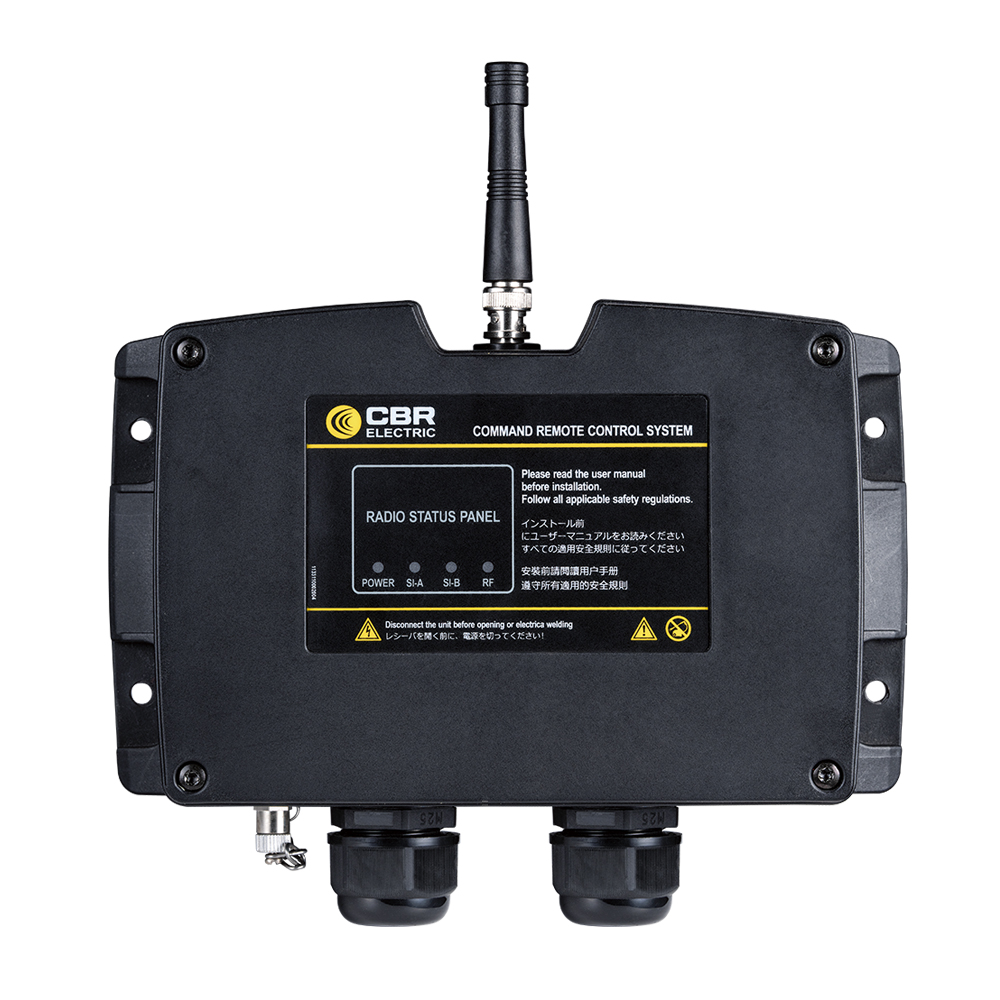

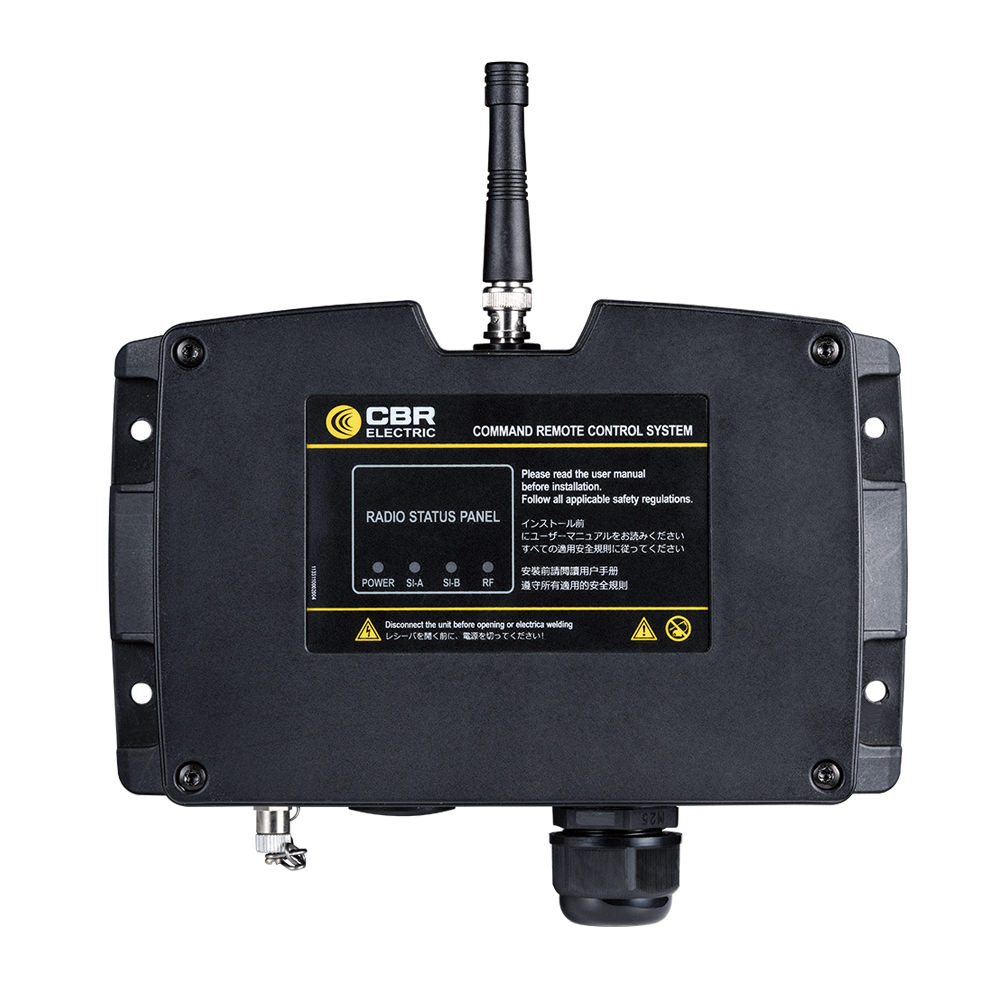

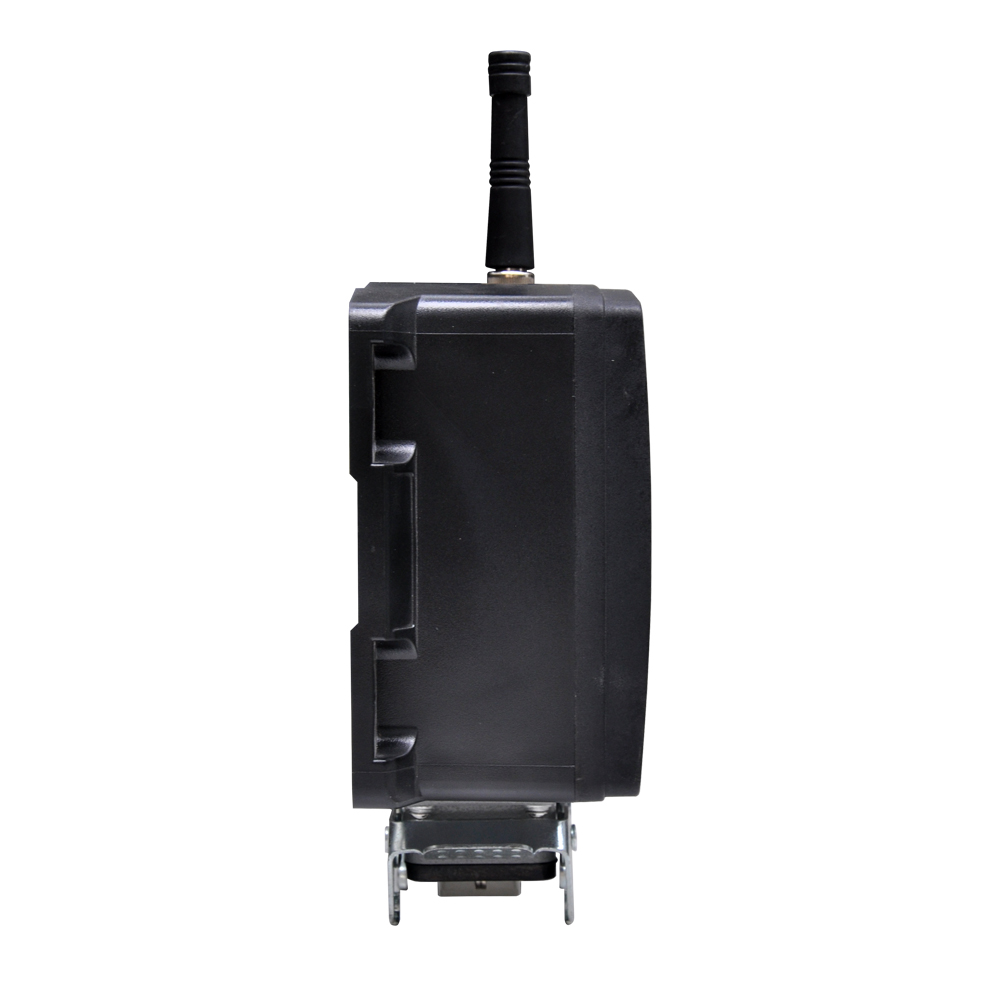

TUR-B1

The product series includes multiple receiver models that can meet various usage needs


The design and manufacturing of the receiver ensure its use in extremely harsh environments. After testing, it can operate normally in environments of vibration, vibration, and electromagnetic interference. The shell also has dust, moisture, and waterproof functions.

The receiver software can repeatedly set parameters to provide sufficient convenience for meeting the requirements of end customers.

The number of output signals from the receiver is determined by the transmitter.


Product Features

→  Reliable performance and easy to master

→  Flexible selection methods

→  Terminal connection, standard cable harness

→  Efficient processor with multiple program functions

→  Easy to maintain design

→  Advanced self-diagnosis technology and error logging function

→  According to different national laws and regulations or customer requirements,

→  Set up different frequency series parallel operation, multi control one, one

→  Control multiple, multi control multi operation lock release function

→  The receiver can be expanded or customized according to customer requirements


TUR series receivers are advanced products with complete functions.TUR series is designed in a reasonable way with larger space for electronic components to be installed and more functional components can be installed to adapt to more applications. TUR series products always put safety in the first place, and the stop function of the receiver and the two safety relays are in line with SIL3 IEC 61508 and Ple safety standards.

TUR-B1/B2 series receivers are available in multiple versions, which depends on your requirements and the interfaces of the machine.

TUR series receivers have been carefully designed, which are not only suitable for the application of switching value control, but also suitable for the receiver with 10-way MOSFET proportional output.

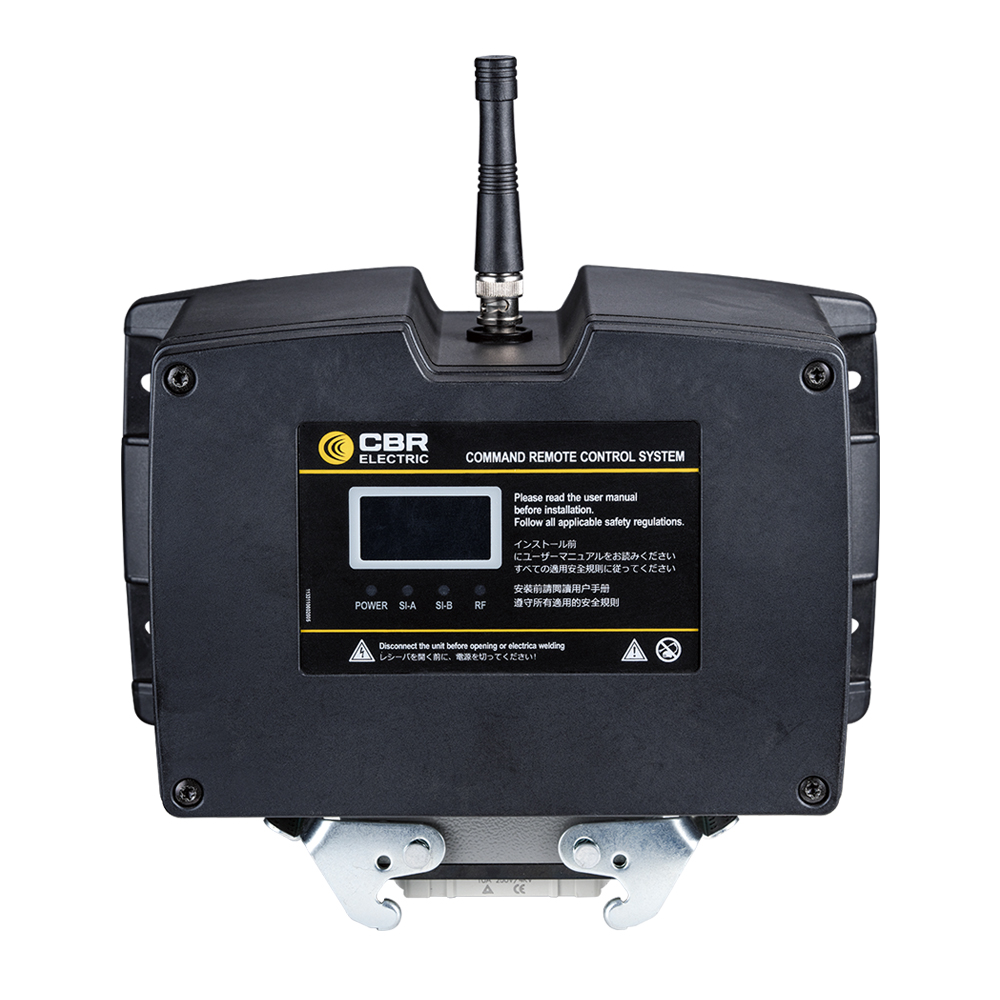

The receiver is equipped with a 1.5-inch OLED display that provides detailed information about the operation status and possible error codes. The receiver has an error log that records both internal system errors and external errors from devices and controllers connected to the system.

Each receiver can only be started by its own transmitter, and no other transmitter or product can unintentionally start this receiver. For maximum security, the receiver is equipped with dual processors that continuously monitor all data and output devices. In the event of any error or disconnection from the transmitter, all output will be immediately turned off.



TUR series receivers can be applied with an optional CAN-bus interface. If the CAN main controller already exists in the required control equipment, it is a perfect solution. Can-open protocol can be used to communicate with external control equipment so as to reduce control cables and improve work efficiency.

Technical Parameters
Housing MaterialGlass fiber reinforced nylon
Operating powerVoltage: AC/DC18~65V or DC9V~36V, Power: <10W
Receiver powerStandby power consumption ≤5W
Wireless remote control receiver system outputCANOPEN, MODBUS, PROFINET and other buses PWM drive; switching line control outputs
Emergency stop relayOutput 5A/250V with dual safety relays in series protection with fault feedback
Panel Indicator LightsIndication of normal system operation and radio transmitting and receiving signals
Antenna ModeExternal
Cable glandAccording to customer requirements
On-site program upgrade function
Operating temperature-20℃~65℃
IP GradeIP65
Overall dimensions230 x 140 x 78 mm.
Installation dimensions212 x 76 mm
Installation apertureΦ5mm
