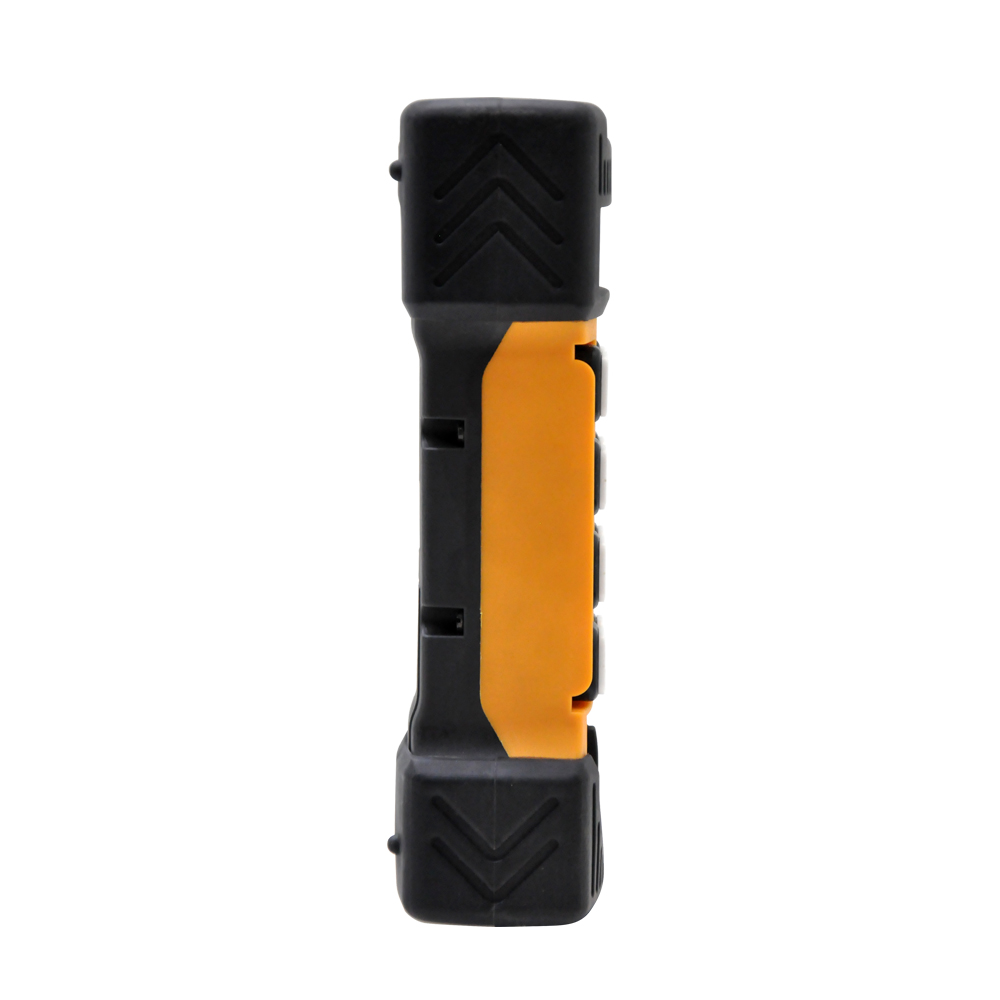

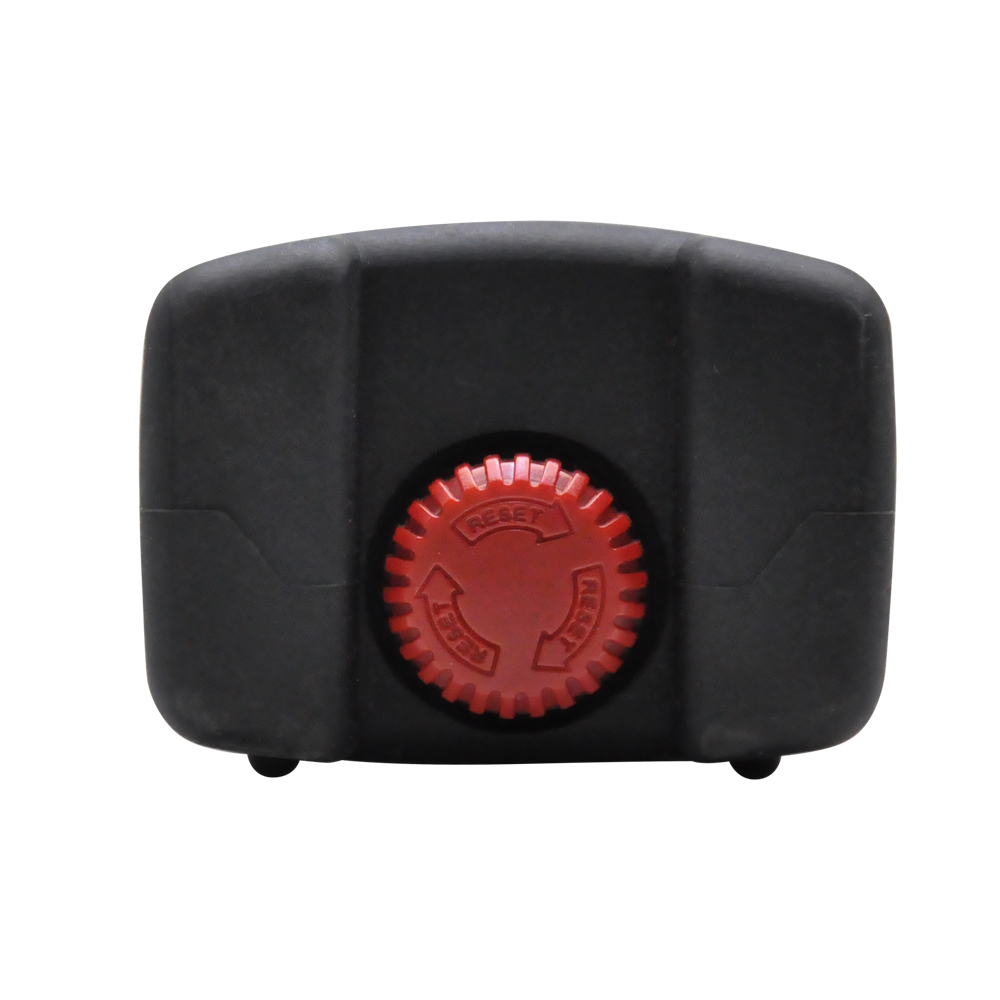

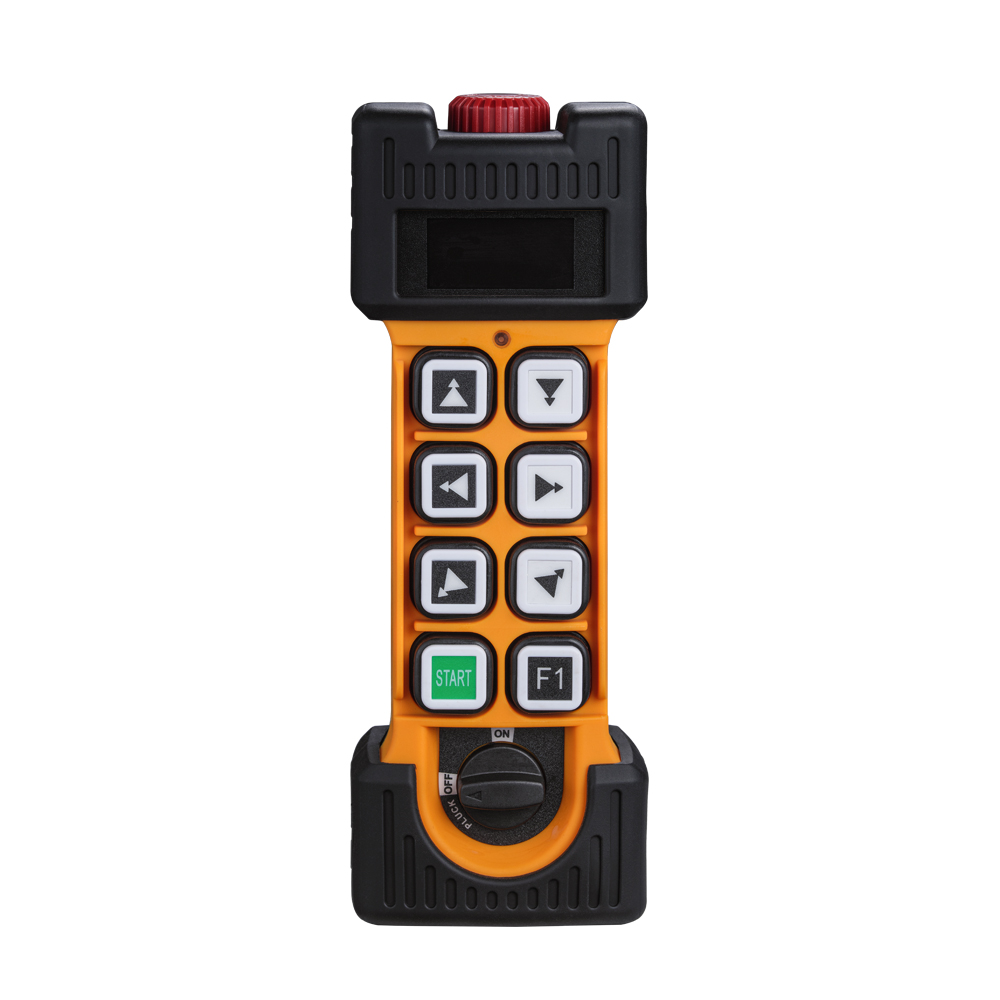

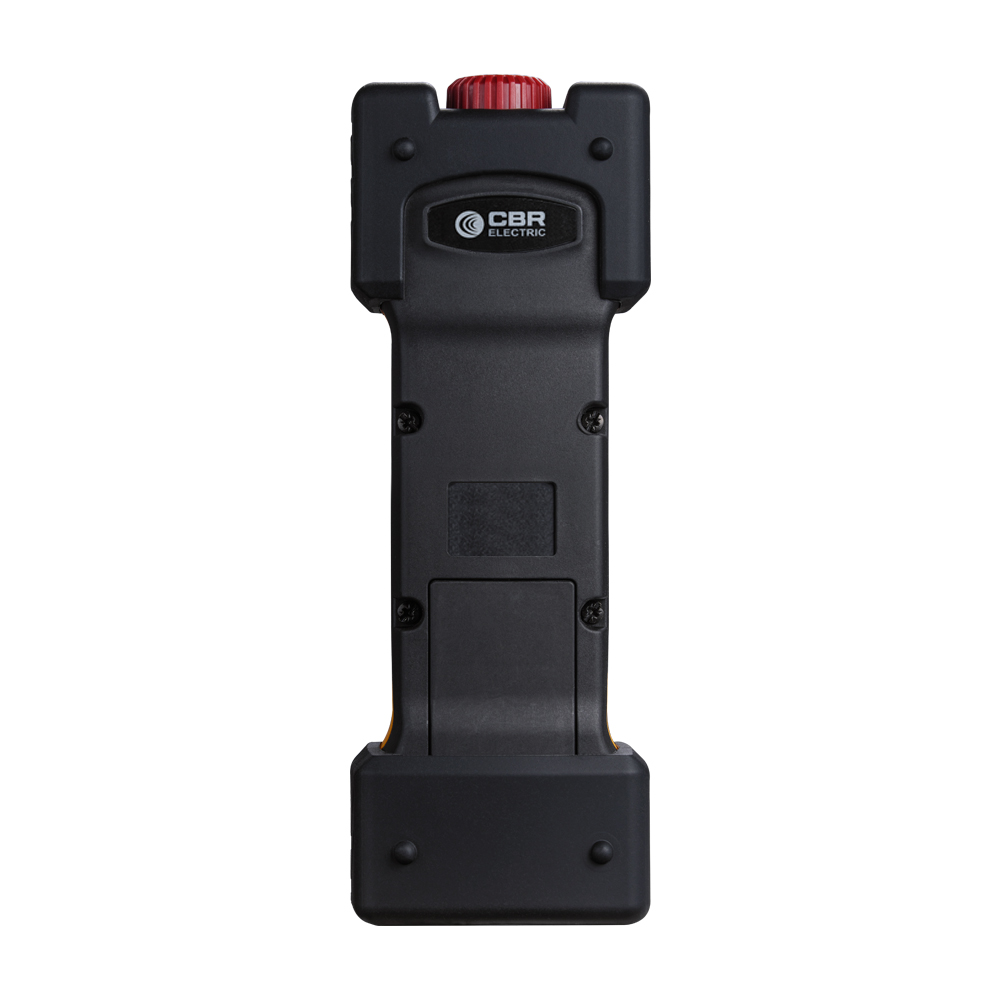

GAL-D08

Safe, sturdy, reliable, and convenient


The handheld transmitter adopts large and specially designed buttons, suitable for wearing gloves for operation, with a lightweight and novel appearance that meets ergonomic requirements and functional design.

The shell of the handheld transmitter is made of engineering plastic materials that adapt to various weather conditions, ensuring its normal operation in extremely harsh environments.

The hidden built-in omnidirectional wireless intelligent RF antenna can effectively eliminate the characteristics of external devices that are prone to damage while ensuring good communication performance.

Multiple LED lights indicate the operating status and battery level, and can assist in checking and troubleshooting minor errors in a timely manner.

The automatic frequency management function can capture and provide reliable wireless signal transmission, and is designed with enhanced multiple anti- interference capabilities. It has the function of digital frequency hopping technology, effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency bands can also be customized according to the laws and regulations of different countries.


Customized label options

→   Customization includes text, fonts, logos, symbols, and colors.

Technical Parameters
Buttons8 single or double step buttons (optional)
Power supply method4 AAA, LR6 batteries
Temperature range-20℃~65℃
Output powerMax.5mW
Frequency334-338MHz, 400-475MHz, 865-870MHz, 902-928MHz,
Scope of Work~100m/~300ft
AntennaSmart antenna built-in
Panel typeInch OLED displays screen
Capable of adding functionsSafe shutdown function, one-to-many function, many-to-one function, many-to-many function, LED feedback function, intelligent identity recognition card, data encryption transmission
Protection levelIP65
size195 x 70 x 52 mm
