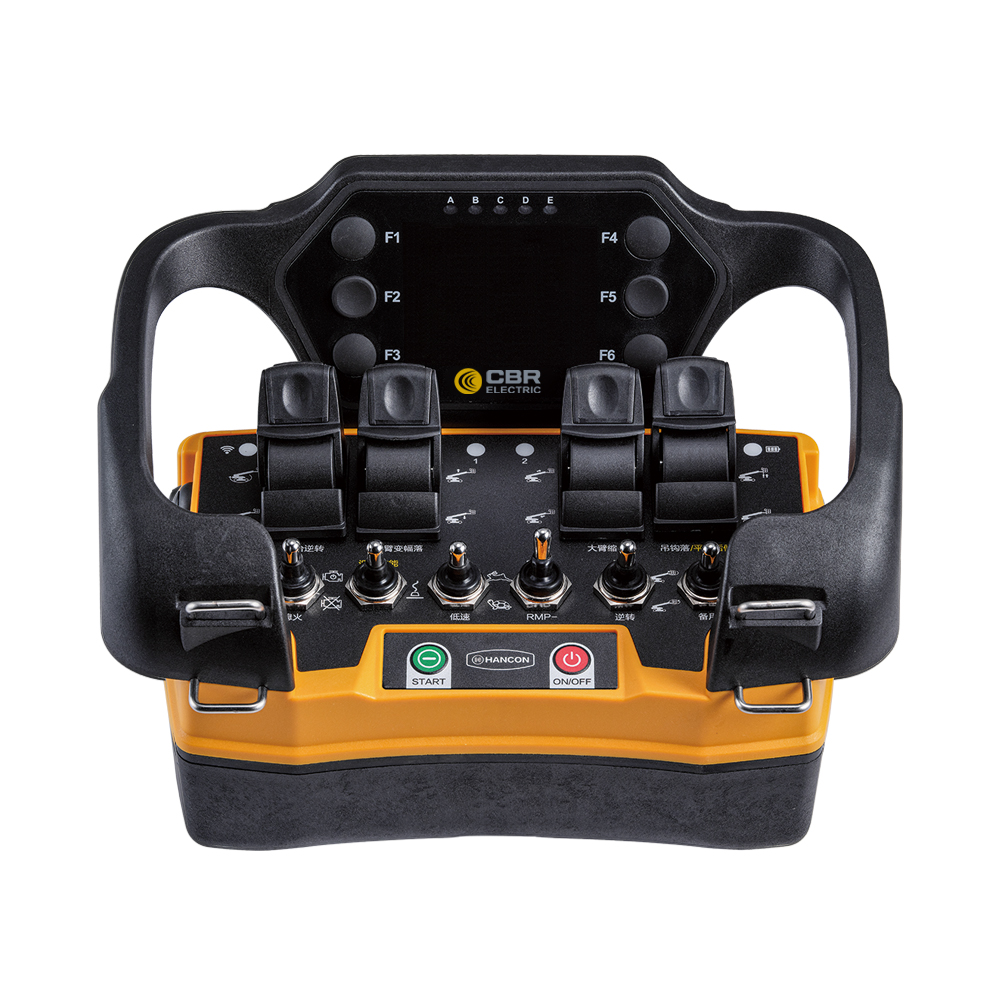

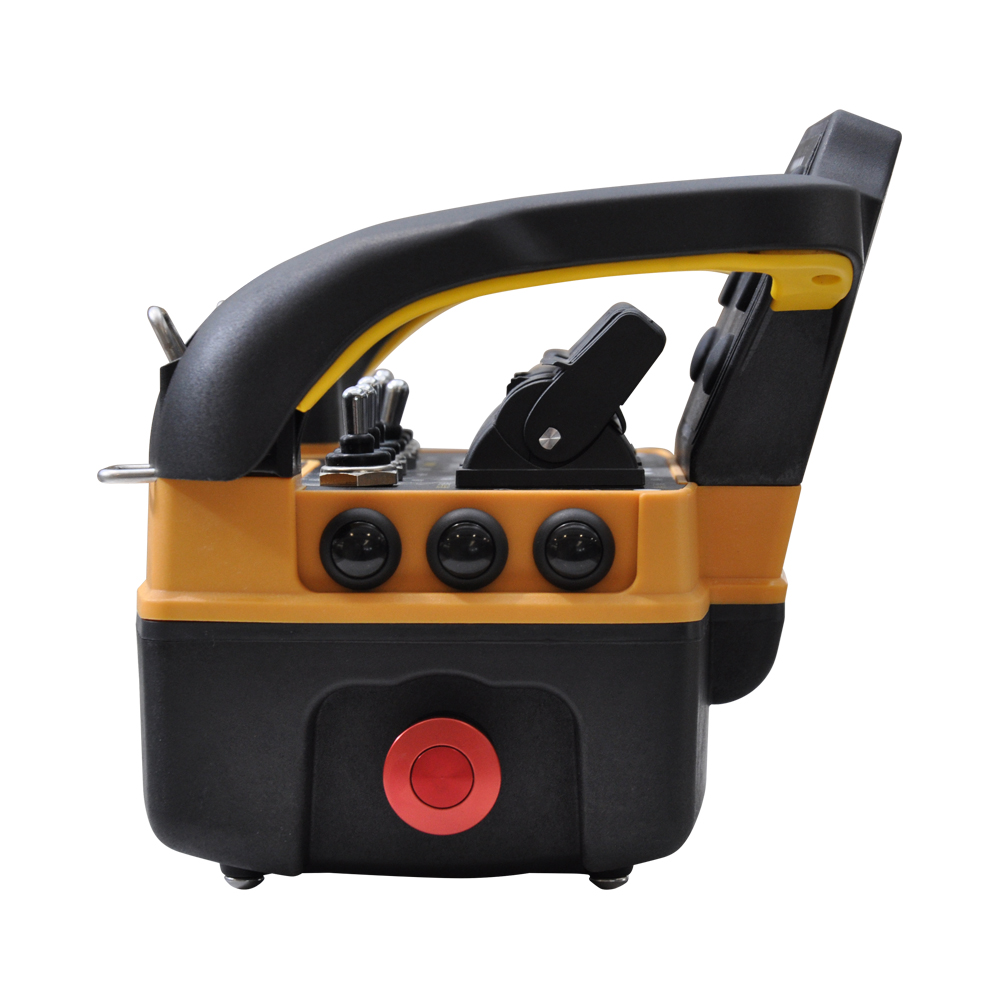

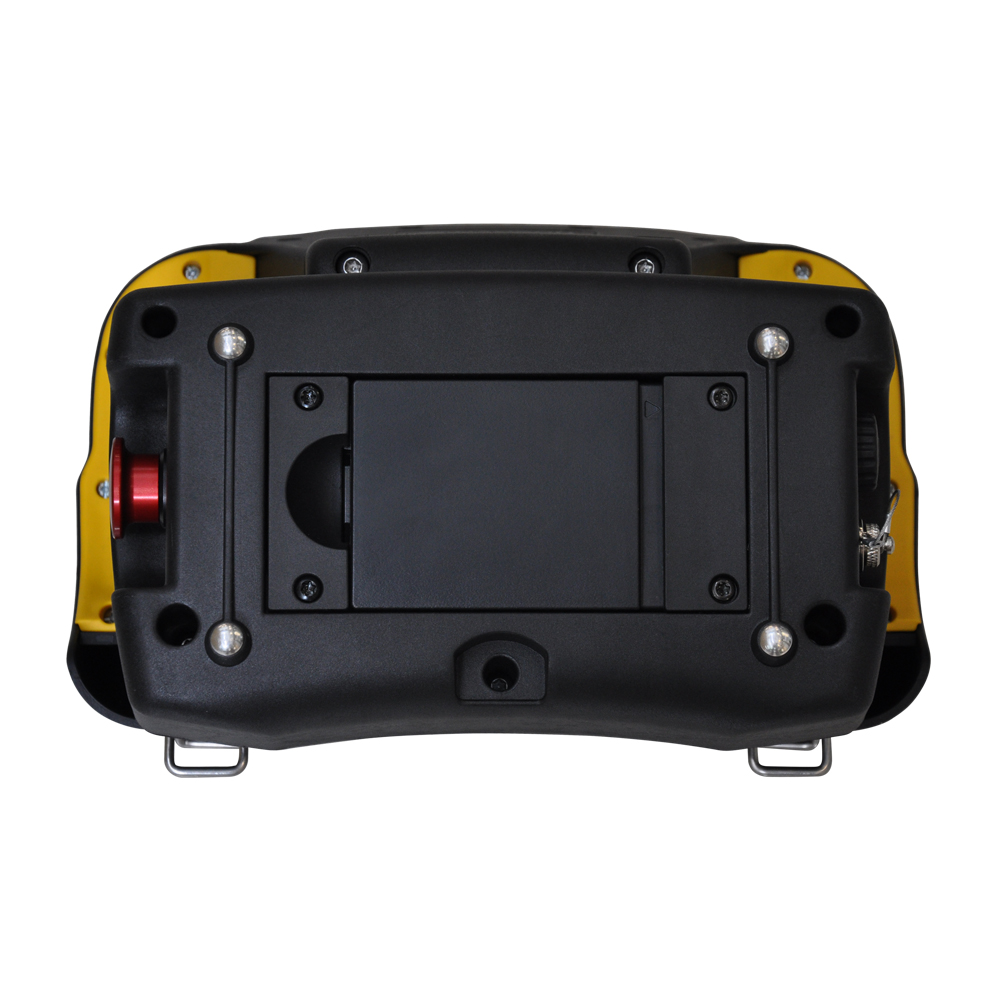

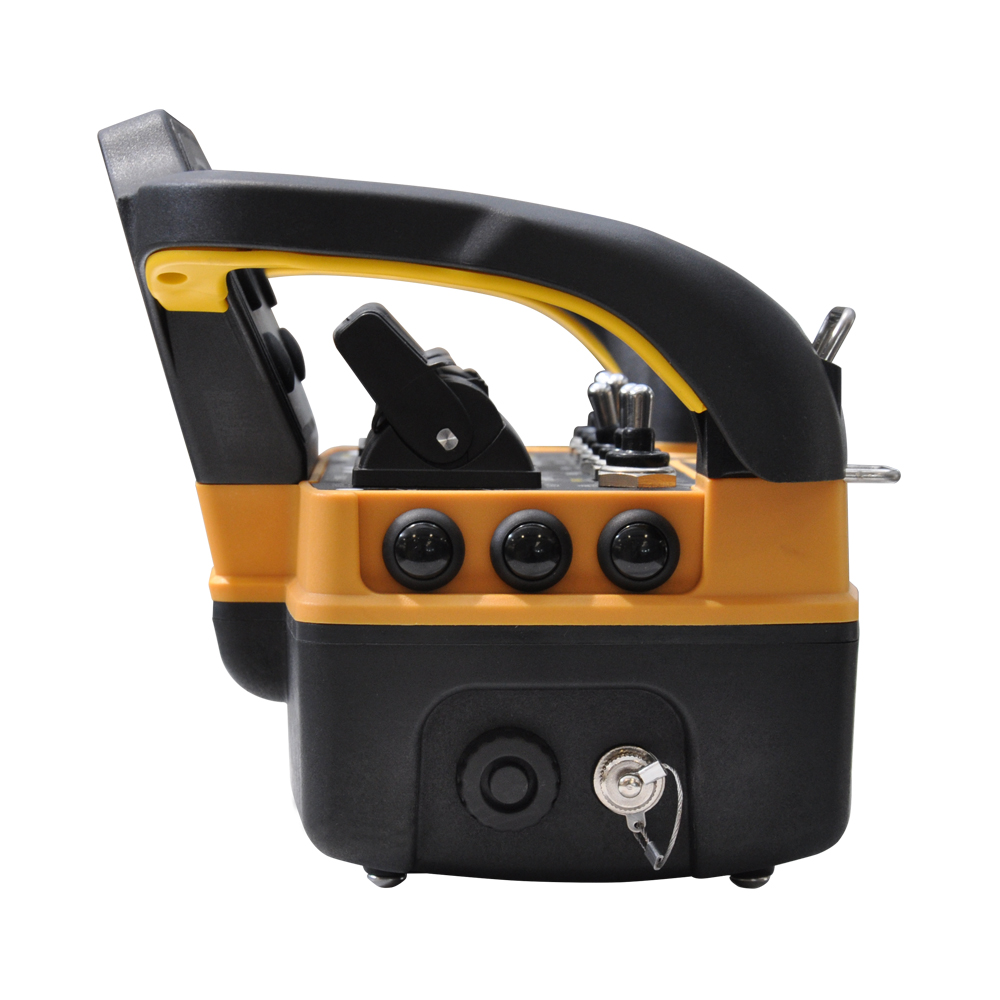

HBT-G

Intelligent, efficient, powerful,and excellent scalability performance


HBT Series can be equipped with 1-6 operating levers or 2-3 operating handles (continuously variable in the X/Y or Z axis direction).
HBT Series is equipped with an emergency stop switch, which can immediately stop all movements and functions of the lifting machinery. The emergency stop function complies with EN13849: 2008cat.3, PL=e standard.
HBT Series can be equipped with multiple toggle switches, buttons, gear switches, and potentiometers to operate and control various functions; For example, the start/stop, acceleration and deceleration of the engine, sound signals, and flow and speed control of the hydraulic system. Adopting high-quality operating levers and toggle switches, it has a good operating feel.

The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.

Built in wireless omnidirectional smart antenna. LED lights and sound signals indicate operating status and battery level. Assist in checking and troubleshooting minor errors and fault displays in the system. Micro operation is a standard design. For example, reduce the speed in five gears, which are 60%, 50%, 40%, 30%, and 20% of the normal speed. The use of rechargeable lithium batteries that can be quickly replaced facilitates disassembly and improves work efficiency.

It can be equipped with LED lights or LCD display screens to indicate and display feedback values of lifting machinery.

This remote control, in conjunction with the receiver, can be adapted to various types of hydraulic valves on the market.

The fastened engineering plastic casing ensures that all functional components are protected from external mechanical damage.

The automatic frequency management function can provide reliable wireless signal transmission, and is designed with enhanced multiple  anti-interference capabilities, equipped with digital frequency hopping technology, effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency bands can also be customized  according to the laws and regulations of different countries.


Compact, compact, and fully functional

The HBT-G series remote control is a standard multifunctional transmitter that can be easily customized according to your needs. Using its modular design, the HBT-G transmitter can use 1-6 linear operating levers or 1-3 cross handle operating levers, as well as several buttons and switches.

The size and arrangement of all control components have been carefully designed to facilitate long-term and frequent use by operators without feeling tired.

The transmitter comes with a series of standard and optional settings and functions, which can improve the operator's experience, such as adjusting the maximum speed of the proportional action in five gears  using the "Turtle Rabbit" toggle switch. The action feedback information of the remote controlled machinery and the working status information of the remote control transmitter itself can be programmed with LED indicator lights to provide feedback to the operator.

Automatic frequency hopping technology can ensure continuous operation and uninterrupted operation when a large number of wireless devices are used simultaneously.

The stop function meets the performance level "d" (PL d), which is the highest level specified in EN ISO 13849-1 and is a legally binding standard applicable to safety critical components of control systems.


Standard accessories:

→   Shoulder/neck strap


Optional accessories:

→   Belt

→   Shoulder strap

→   Hook

Technical Parameters
Real time performanceReal time control technology
Frequency controlPLLPhase-locked loop
Dedicated address code32bit >42billion
Control distance>100m
Low voltage alarmAudible and visual alarm (6.0~6.5VDC)
Malfunction alarmMultiple combinations of sound and light alarms
Power saving protectionAutomatic shutdown (can be set for 0-30 minutes)
Transmitter antennaBuilt in
Shell materialHigh strength engineering plastics
Communication methodInstant messaging (RF-M4386-SI44/RF-EM4386-SI44)
Transmission frequency430~432MHz, 433.05~434.79MHz/25k
Transmitting power≤10mW
Operation form2*Cross rocker or 4*Linear operating lever
Number of buttonsMax 14
Selection switchMax 6
Working power supply7.4VDC(Li-On rechargeable)
Working current≤150mA
Standby current≤50mA
Status displayMax LED*4+LED*5(Display)
EMS methodPush-pull emergency stop button
Protection levelIP65
Size250 x 174 x 171mm
