This series of products is an intrinsically safe explosion-proof product, designed for installation and use in situations containing explosive hazardous gas mixtures.

The explosionproof performance meets the requirements of intrinsic safety and explosion-proof.

Related specifications

→  GB3836.1

Explosion proof electrical equipment for explosive atmospheres

Chapter 1 General requirements Test

→  GB3836.2

Explosion proof electrical equipment for explosive atmospheres

Chapter 2: Flameproof types

→  GB3836.4

Explosion proof electrical equipment for explosive atmospheres

Chapter 4: Intrinsically safe types

Strong performance and rich functionality

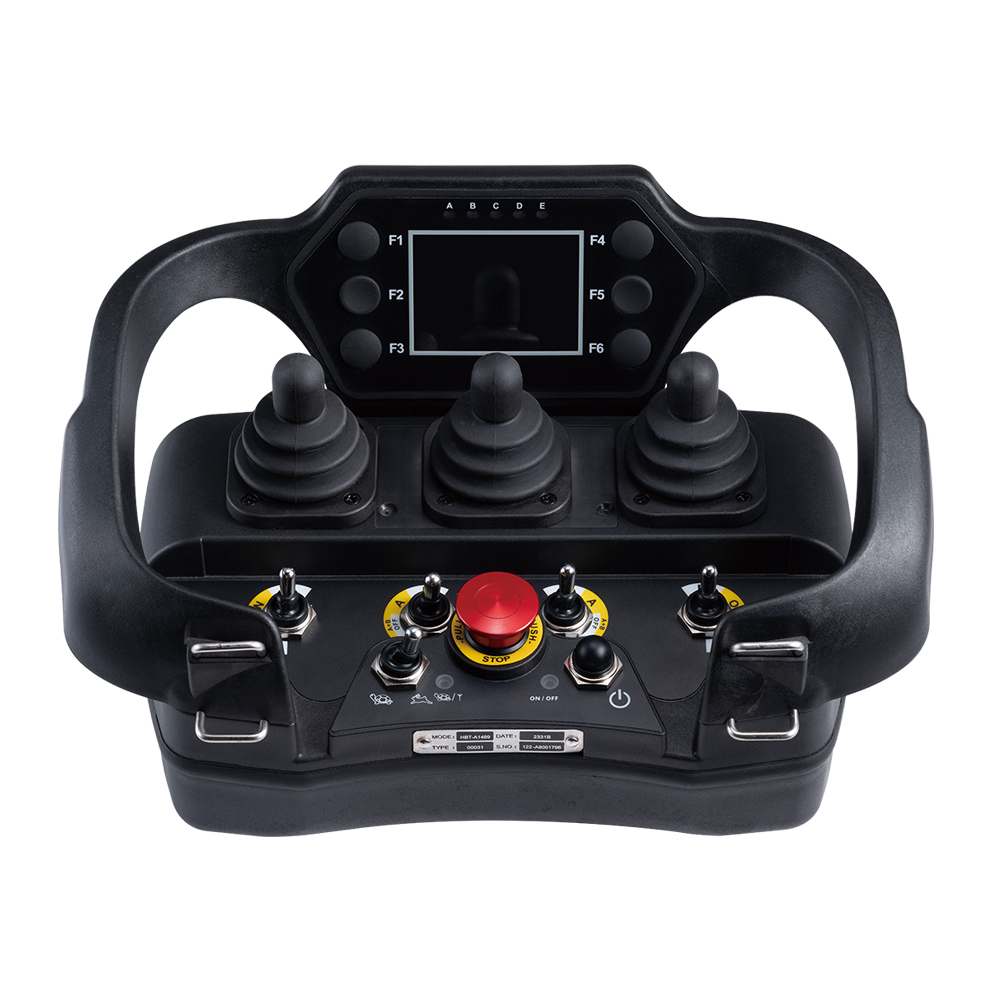

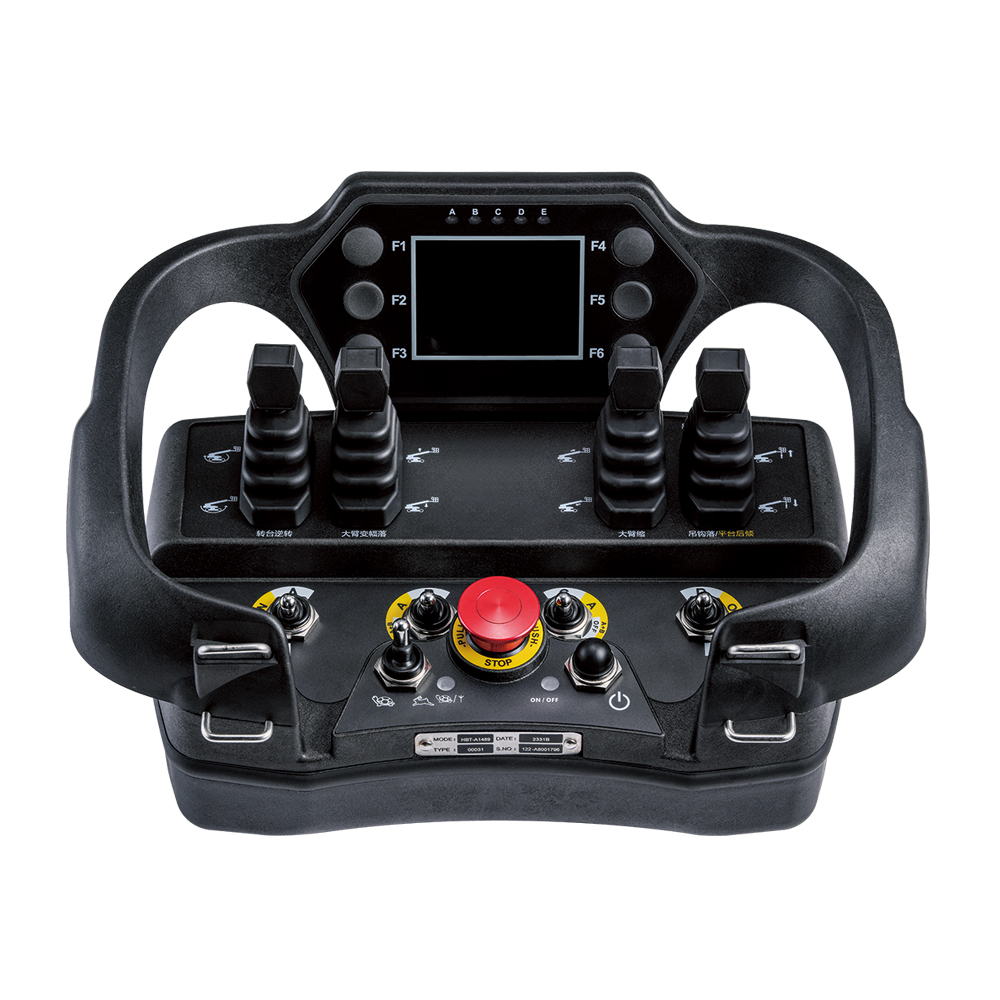

This transmitter can be equipped with 1-6 operating levers or 2-3 operating handles (continuously variable in the X/Y or Z axis direction).

This transmitter is equipped with an emergency stop switch, which can immediately stop all movements and functions of the lifting machinery. The emergency stop function complies with EN13849, 2008cat. 3, PL=e standards.

This transmitter can be equipped with multiple toggle switches,buttons, gear switches, and potentiometers to operate and control various functions; For example, the start/stop, acceleration and deceleration of the engine, sound signals, and flow and speed control of the hydraulic system. Adopting highquality operating levers and toggle switches, it has a good operating feel.The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.

Can be equipped with LED lights and a 2.8 inch LCD color display screen to indicate and display feedback values of lifting machinery.This remote control, in conjunction with the receiver, can be adapted to various types of hydraulic valves on the market.

The automatic frequency management function can provide reliable wireless signal transmission, and is designed with enhanced multiple anti-interference capabilities, equipped with digital frequency hopping technology, effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency bands can also be customized according to the laws and regulations of different countries.Standard shoulder/neck straps(optional equipment accessories also include belts, shoulder straps, hooks, etc.).

Running time: Can last for about 10 hours after a single charge (rechargeable lithium battery).
