GS-A0 OLED

Compact, compact, and fully functional

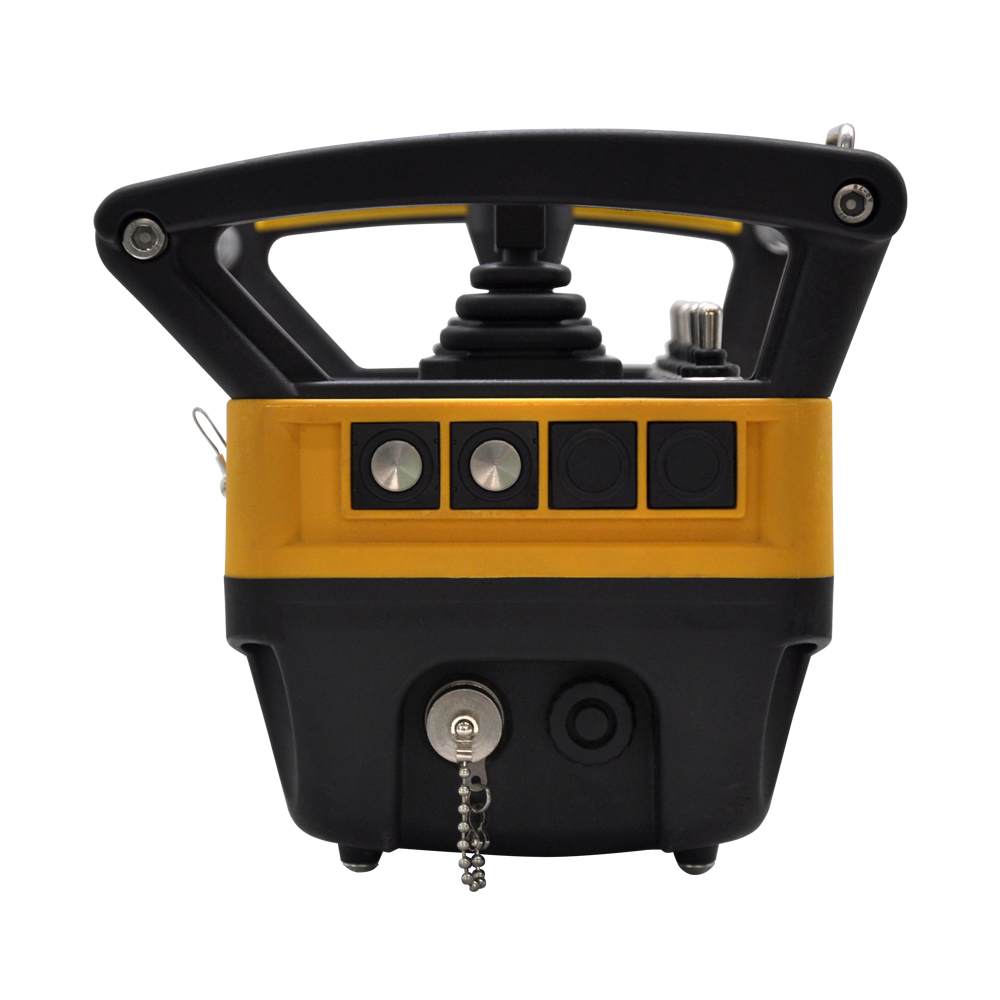

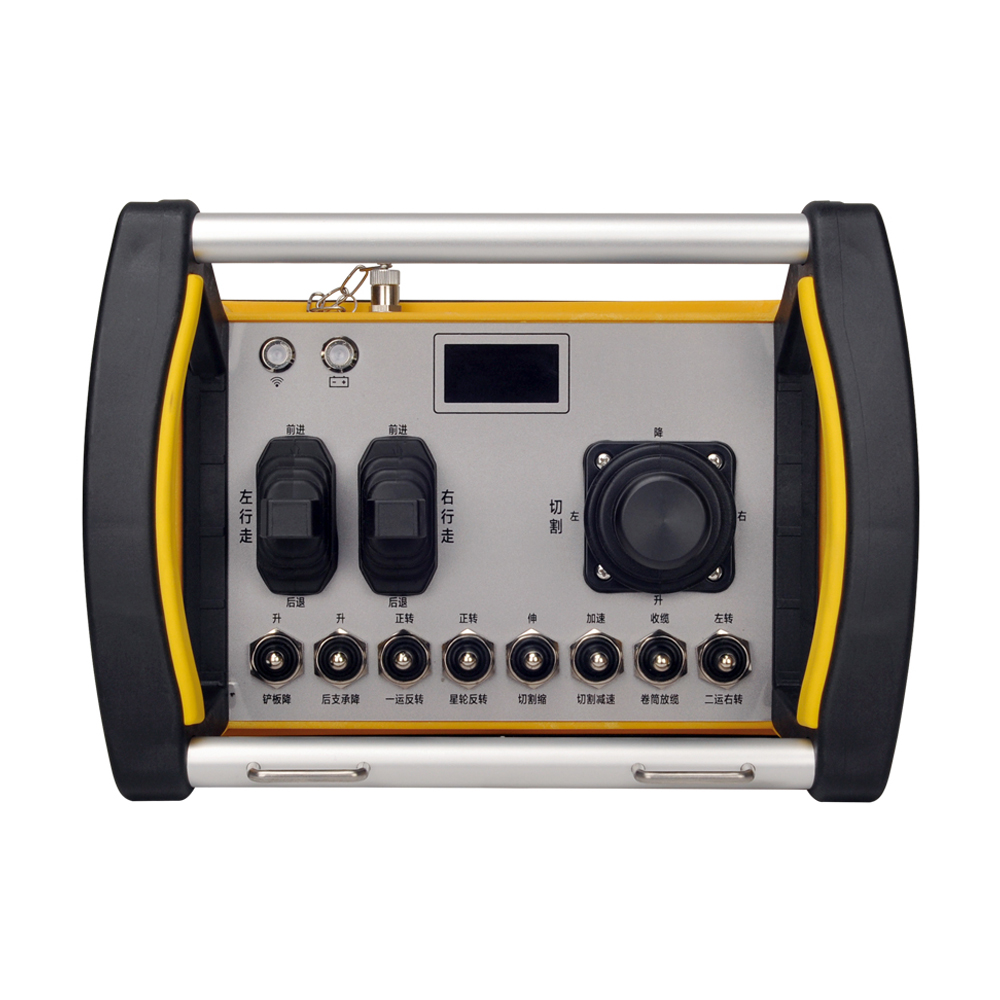

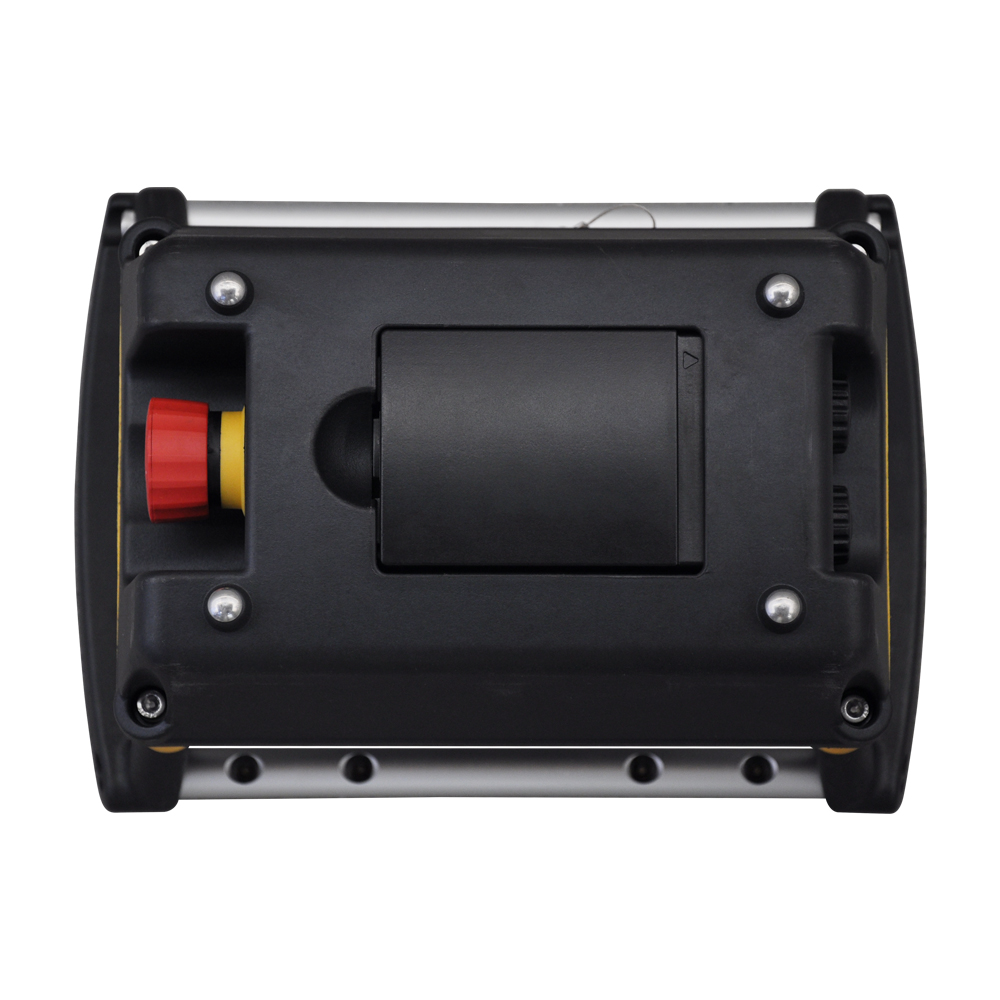

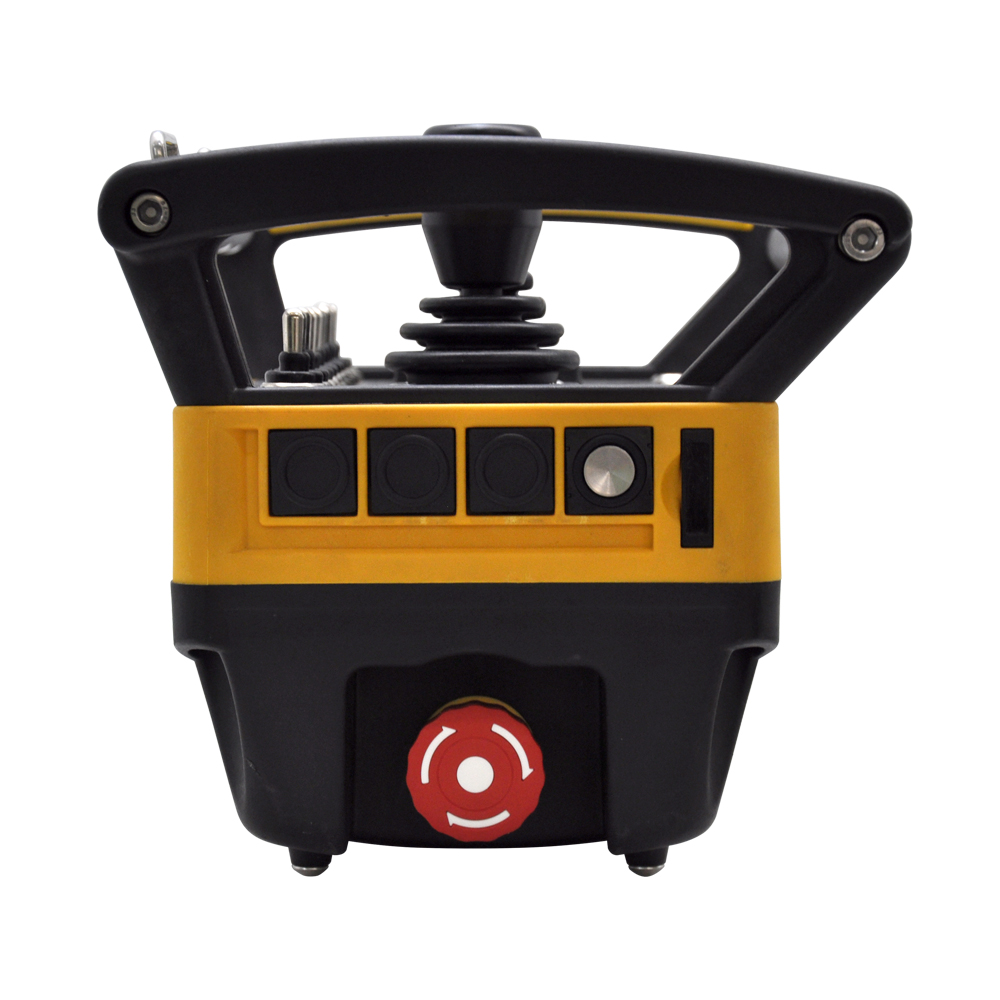

The GS-AO series remote control is a standard multifunctional transmitter that can be easily customized according to your needs. By utilizing its modular design,the GS-AO transmitter can use 1-6 linear joysticks or 1-3 cross handle joysticks, as well as several buttons and switches. The size and arrangement of all control components have been carefully designed to facilitate long-term and frequent use by operators without feeling tired.

The transmitter comes with a series of standard and optional settings and functions to improve the operator's experience, such as using the "Turtle/Rabbit" toggle switch to adjust the maximum speed of the proportional action in five gears. The action feedback information of the remote controlled machinery and the working status information of the remote control transmitter itself can be programmed with LED indicator lights to provide feedback to the operator.

Automatic frequency hopping technology can ensure continuous operation and uninterrupted operation when a large number of wireless devices are used simultaneously.

The stop function meets the performance level "d" (PLd),which is the highest level specified in EN ISO 13849-1 and is a legally binding standard applicable to safety critical components of control systems.

Optional SMART C-ENIGMA (Intelligent Information Card) ensures authorized operators use the remote control system to control the equipment. By managing and identifying remote control devices through SMART CENIGMA, setting the usage and control permissions of operators, effectively avoiding unauthorized personnel from using remote control system to control devices.


Customized label options

→  Customization includes text, fonts, logos, symbols, and colors.

Technical Parameters
Radio frequency range430-450MHz;850-870MHz
Number of wireless channels0~199
Maximum output power≤10mW
Receiver sensitivity≤-108dBm@20KBps
Wireless Modulation Mode(G)FSK
Data transmission rate20KBps
FH methodAutomation
Airborne data encryptionDynamic encryption with own protocol (own patented technology)
System address code32-bit fixed ID address
Effective control distanceRadius from receiver not less than 120m (open distance)
Consistency of actionRocker action and drive components to maintain the same time, action lag time ≤ 0.1s
Disabled protectionEmergency stops
Passive stopping time2S
Prevent accidental movement from a stationary position (UMFS)Initial position detection of all switches at startup
Anti-interferenceBuilt-in electrical system immunity according to EN300220
Vibration and shock testsAdopted in accordance with GB/T 2423.5-1995, GB/T 2423.10-2008
Operation panelCustomized according to customer's program
Antenna Mode Internally installed
Battery low alert and alarm
RFIC card authorization and management functions
Operate switching control pointsCustomized according to customer's program
Number of universal rocker controlsCustomized according to customer's program
Number of linear joystick controlsCustomized according to customer's program
Number of rotary potentiometersCustomized according to customer's program
Operating temperature-20℃~65℃
Power supplyModule lithium battery 3.7V 7800mAH
Continuous Use Endurance≥ 40 hours
Switching function for systems with dual batteriesFree switching function with dual battery power detection
Transmitter-Receiver Pairing Function
On-site program upgrade function
Shell materialGlass fiber reinforced nylon
Support protectionMetal aluminum alloy frame
IP GradeIP65
Size259 x 186 x 179 mm.
