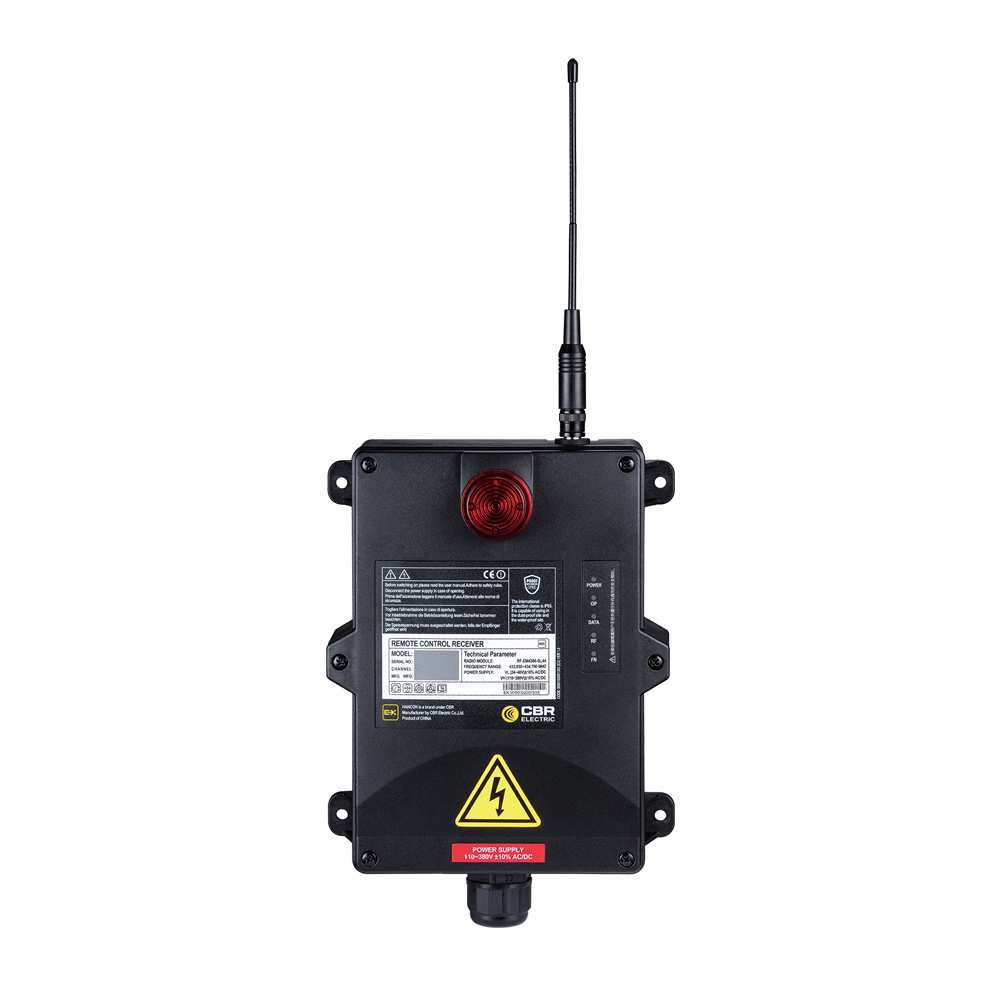

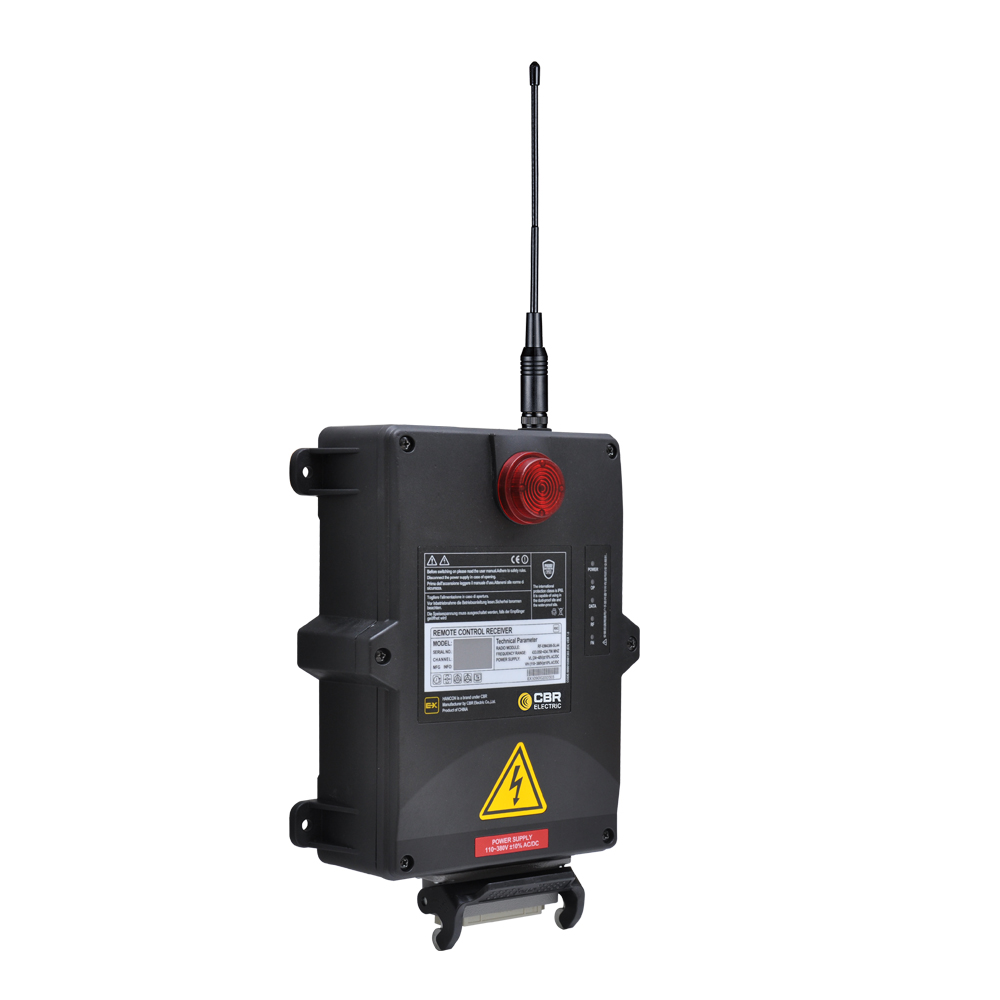

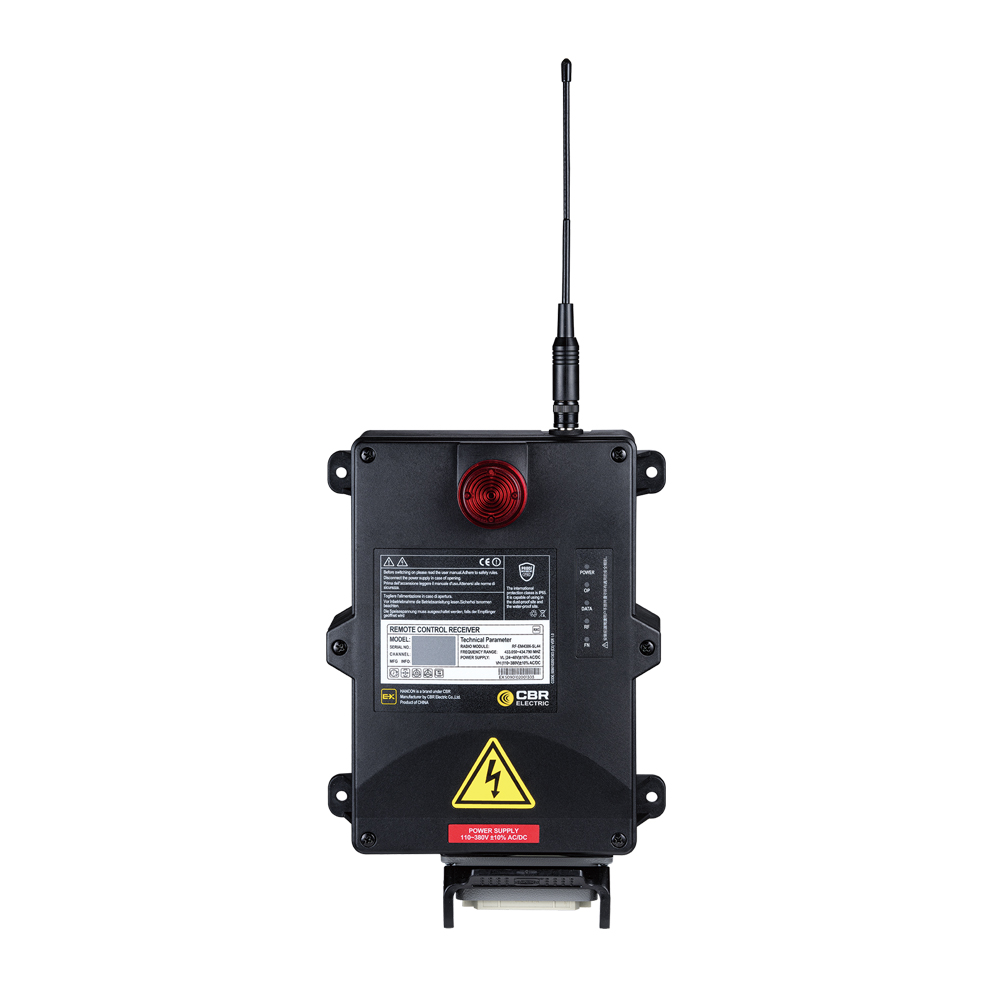

CTR-M

The product series includes multiple receiver models that can meet various usage needs


The design and manufacturing of the receiver ensure its use in extremely harsh environments. After testing, it can operate normally in environments of vibration, vibration, and electromagnetic interference. The shell also has dust, moisture, and waterproof functions.

The receiver software can repeatedly set parameters to provide sufficient convenience for meeting the requirements of end customers.

The number of output signals from the receiver is determined by the transmitter.


Product Features

→  Reliable performance and easy to master

→  Flexible selection methods

→  Terminal connection, standard cable harness

→  Efficient processor with multiple program functions

→  Easy to maintain design

→  Advanced self-diagnosis technology and error logging function

→  According to different national laws and regulations or customer requirements,

→  Set up different frequency series parallel operation, multi control one, one

→  Control multiple, multi control multi operation lock release function

→  The receiver can be expanded or customized according to customer requirements

Technical Parameters
ModelCTR-M2ACTR-M2B
Shell materialHigh strength engineering plastics
Power supplyVL:24~48V ±10% AC/DC

VH:110~380V ±10% AC/DC

Receiver rated power≤6W
Receiving sensitivity-115dBm
Receiver fault displayLED working/fault status display
Output methodFully airtight relay output
Relay contact capacity8A/250VAC

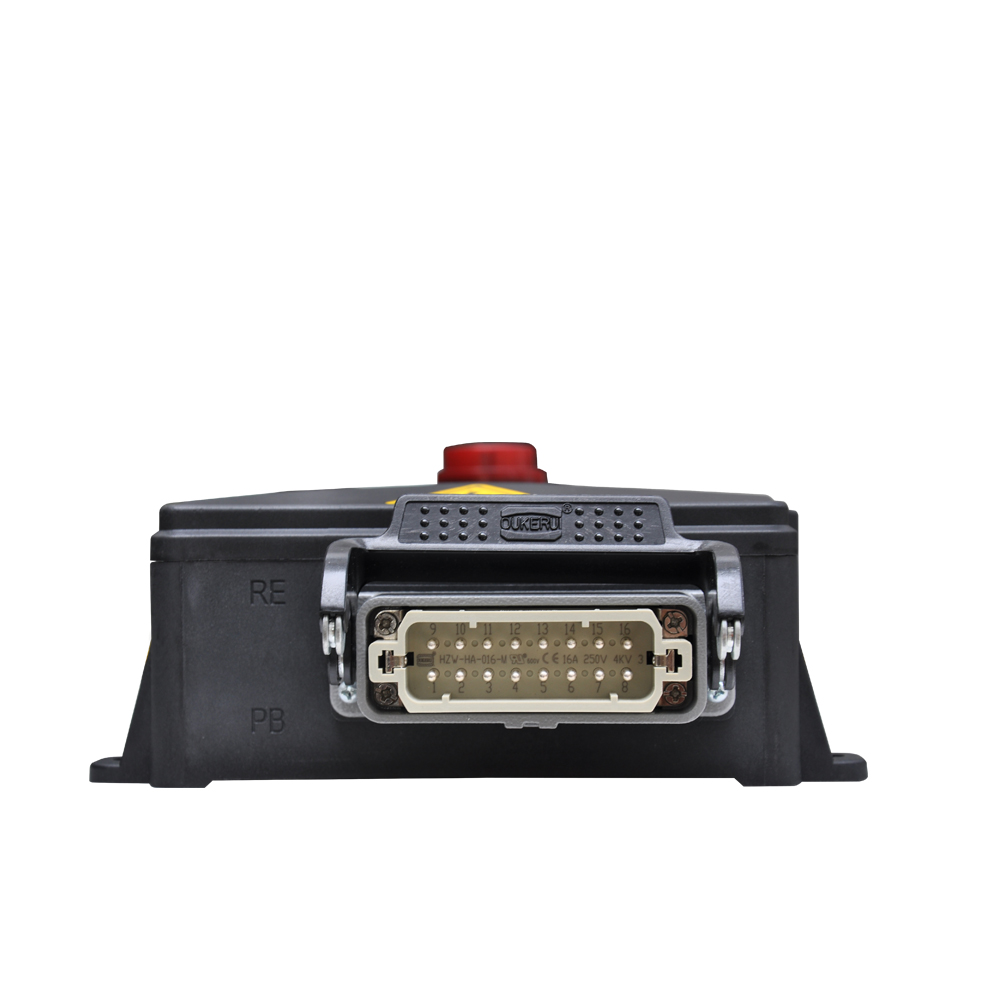

Output interfaceTerminal output (including pipe joint) ● HAN16 and 25 heavy-duty connectors can be added non-standard
Receiver antennaSMA external antenna (optional with enhanced high gain antenna)
Operating temperature range-20℃~65℃
Protection levelIP65
Overall dimensions236 x 156 x 78mm
Installation dimensions177x186mm
Installation apertureΦ5mm
