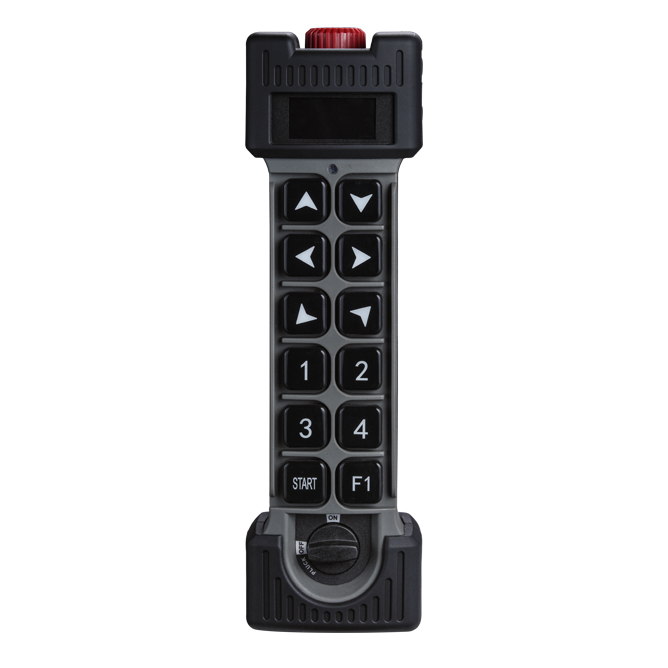

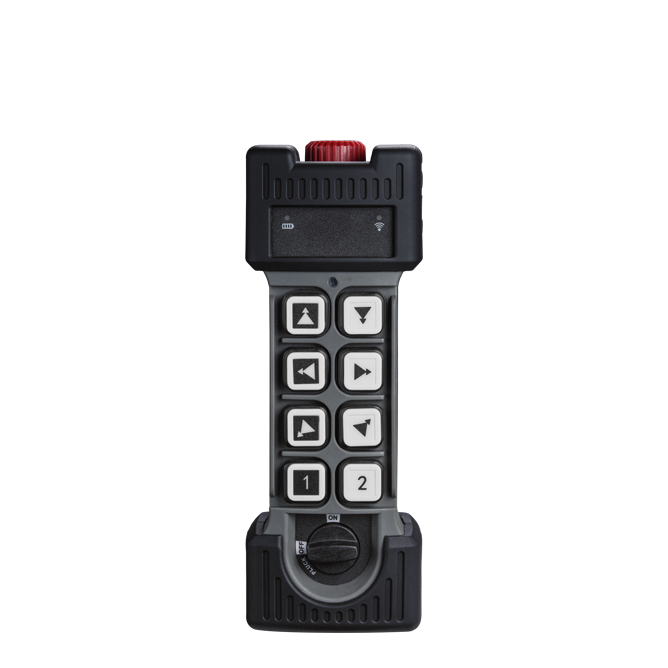

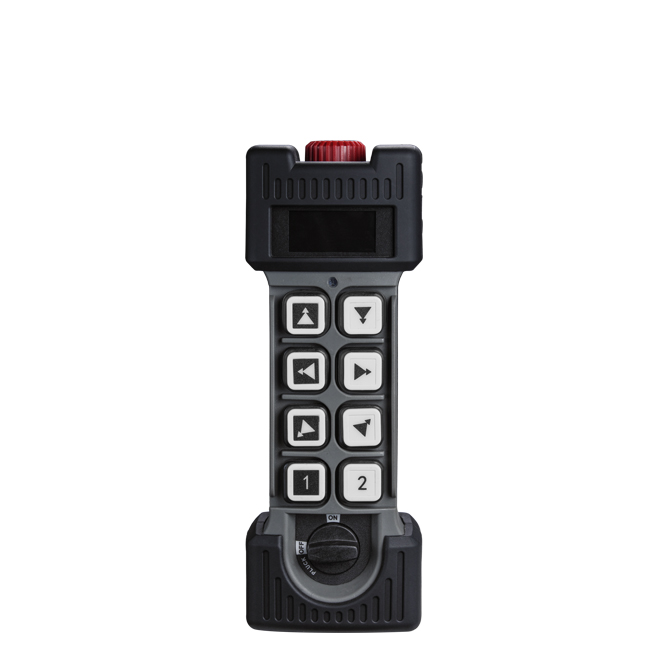

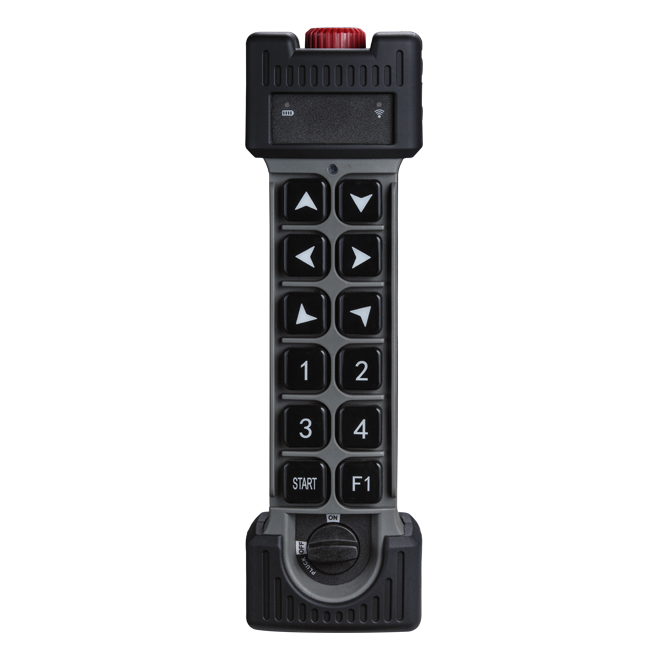

GAL-D

This series of products is an intrinsically safe explosion-proof product, designed for installation and use in situations containing explosive hazardous gas mixtures.

The explosionproof performance meets the requirements of intrinsic safety and explosion-proof.


Related specifications

→  GB3836.1

Explosion proof electrical equipment for explosive atmospheres

Chapter 1 General requirements Test


→  GB3836.2

Explosion proof electrical equipment for explosive atmospheres

Chapter 2: Flameproof types


→  GB3836.4

Explosion proof electrical equipment for explosive atmospheres

Chapter 4: Intrinsically safe types


Safe, sturdy, reliable, and convenient

The entire series offers 6, 8, 10, and 12 single or double step buttons.

The handheld transmitter is equipped with an emergency stop switch, which can immediately respond to various actions and operations of the emergency stop mechanical equipment. The emergency stop function meets the EN13849: 2008cat.3. PL=d standard.All buttons can be programmed to activate output according to user requirements or generate specified logical functions. The definition of buttons includes jog, interlock, hold, reset, etc.

The entire series of remote controls are equipped with OLED screen display, which can reliably provide operators with the current working status parameters, images, identification, etc. of the equipment even in strong sunlight or dark workplaces. And it has a self diagnostic mode, and LED can display redundant fault diagnosis and functional status.

The entire series is equipped with bidirectional communication function as standard, ensuring that the status of the equipment can be fed back to the operators.

Excellent hardware circuit design combined with software functions enables excellent performance at low operating current consumption, effectively ensuring more continuous and uninterrupted free operation without replacing the battery, and improving work efficiency.

The protection level is IP65, dustproof, and resistant to high temperature and humidity. Silicone rubber edge protection provides superior impact resistance.

The lightweight and ergonomic design is suitable for operators to operate on the palm for long periods of time, including wearing gloves.Each transmitter can be equipped with a belt buckle that can be easily clipped onto the operator's belt or equipped with a hand/wrist strap for easy carrying and not easily falling off to ensure safety.

This series of remote controls is suitable for responding to a large number of non-standard and unique functions and output applications in more applications, providing customers with more and better selectivity.

It can control multiple receivers or multiple transmitters to control one receiver and has priority control function.

Equipped with safe and simple tool free pairing function, customized label options, including text, font, logo, symbol, and color customization.

Technical Parameters
Total number of functions8-12 single or double step buttons (optional)
Power supply method4 AAA, LR6 batteries
Temperature range-20℃~65℃
Output powerMax.5mW
Frequency334-338MHz, 400-475MHz, 865-870MHz, 902-928MHz,
Scope of work~100m/~300ft
AntennaSmart antenna built-in
Panel type “GAL-A”LED indicator lights \ “GAL-D”1.5 inch OLED displays screen
Capable of adding functionsSafe shutdown function, one-to-many function, many-to-one function, many-to-many function, LED feedback function, intelligent identity recognition card, data encryption transmission
Protection levelIP65
Size195 x 70 x 52 mm \ 240 x 70 x 52 mm
